  • Friction Primer Packs???

    Hello,

    I'm looking for information on reproducing proper Artillery Primer packs. I have one PDF of the Frankford label and have seen a few photos of surviving packs and general dimensions.

    What I really need to know is how the packs were milled. Were they solid pine with five holes bored in them, was there a channel cut for the priming wires to lay in, etc?

    Does anyone have any good information?

    I'd love to make some Confederate packs too if there is any good info on those.

    Our unit's focus is the Eastern theater. Any help would be greatly appreciated.
    David H. Thomas
    Starr's NC Battery
    Fayetteville, NC

  • #2
    Re: Friction Primer Packs???

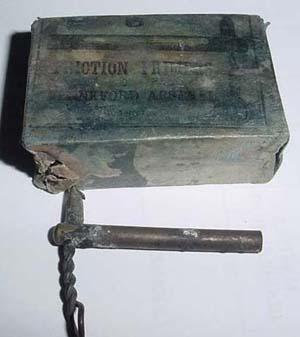

    Click image for larger version

Name:	friction primers.jpg
Views:	2
Size:	35.3 KB
ID:	223513

    I am not going to unrap these but they seem to be placed in the box in a horizontal position just like shown on the label. If I look in the torn end I can see the wire loops. The box is hollowed out and slotted but I can't determine the exact configuration. The paper is removed using a piece of tape just like is used on the fuse packs.
    Jim Mayo
    Portsmouth Rifles, Company G, 9th Va. Inf.

    CW Show and Tell Site
    http://www.angelfire.com/ma4/j_mayo/index.html

    Comment


    • #3
      Re: Friction Primer Packs???

      Thanks Jim,

      It's the configuration that confounds me. I would not want to open an original either.
      David H. Thomas
      Starr's NC Battery
      Fayetteville, NC

      Comment


      • #4
        Re: Friction Primer Packs???

        Originally posted by faabala View Post
        Thanks Jim,

        It's the configuration that confounds me. I would not want to open an original either.
        All I can tell you about the wood block by feeling it is that the long sides are solid with no channeling. Each end is channeled out to accept the wires and there seems to be a solid part in the center. Picture a block of wood the correct size with two holes drilled side by side for holding the primer tubes. Some of the area between the holes at each end has been channeled out to accept the wire loops.
        Jim Mayo
        Portsmouth Rifles, Company G, 9th Va. Inf.

        CW Show and Tell Site
        http://www.angelfire.com/ma4/j_mayo/index.html

        Comment


        • #5
          Re: Friction Primer Packs???

          This one is open, and an investment in an original with long-term benefit if you wish to reproduce them. http://www.regimentalheadquarters.co...iction-primers
          Marc A. Hermann
          Liberty Rifles.
          MOLLUS, New York Commandery.
          Oliver Tilden Camp No 26, SUVCW.


          In honor of Sgt. William H. Forrest, Co. K, 114th PA Vol. Infantry. Pvt. Emanuel Hermann, 45th PA Militia. Lt. George W. Hopkins & Capt. William K. Hopkins, Co. E, 7th PA Reserves. Pvt. Joseph A. Weckerly, 72nd PA Vol. Infantry (WIA June 29, 1862, d. March 23, 1866.) Pvt. Thomas Will, 21st PA Vol. Cavalry (WIA June 18, 1864, d. July 31, 1864.)

          Comment


          • #6
            Re: Friction Primer Packs???

            When we did the "Smith/Brewster March" in northeastern Georgia, we issued out live rounds to the company. In preparation, organizer Ken Smith wanted to determine exactly how the cartridges were arranged inside the pack (evidently this wasn't common knowledge back in 1995). At little expense and no damage, he took an original sealed pack to his dentist and had them shoot an x-ray and it very clearly showed the arrangement. Additionally, the St. Louis Arsenal labels were reproduced using true letterpress printing plates, not modern litho, inkjet or copy machine. Best looking repro arsenal packs I've ever seen.
            Paul McKee

            Comment


            • #7
              Re: Friction Primer Packs???

              Thanks everyone. Any more info would be greatly appreciated. Especially any photos of Confederate packs.
              David H. Thomas
              Starr's NC Battery
              Fayetteville, NC

              Comment


              • #8
                Re: Friction Primer Packs???

                I should have known better than not use the search function. My answer was posted in 2008.

                David H. Thomas
                Starr's NC Battery
                Fayetteville, NC

                Comment


                • #9
                  Re: Friction Primer Packs???

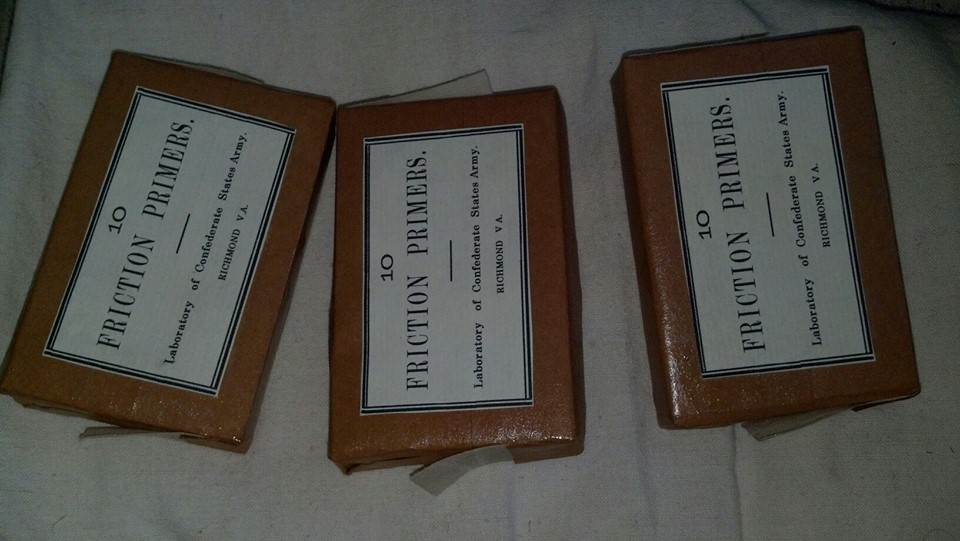

                  I thought I might update this thread with some of the replicas I have have made. They are fully functional and we use them at events. Click image for larger version

Name:	1016645_10201198542626721_319864053_n.jpg
Views:	1
Size:	113.7 KB
ID:	223962

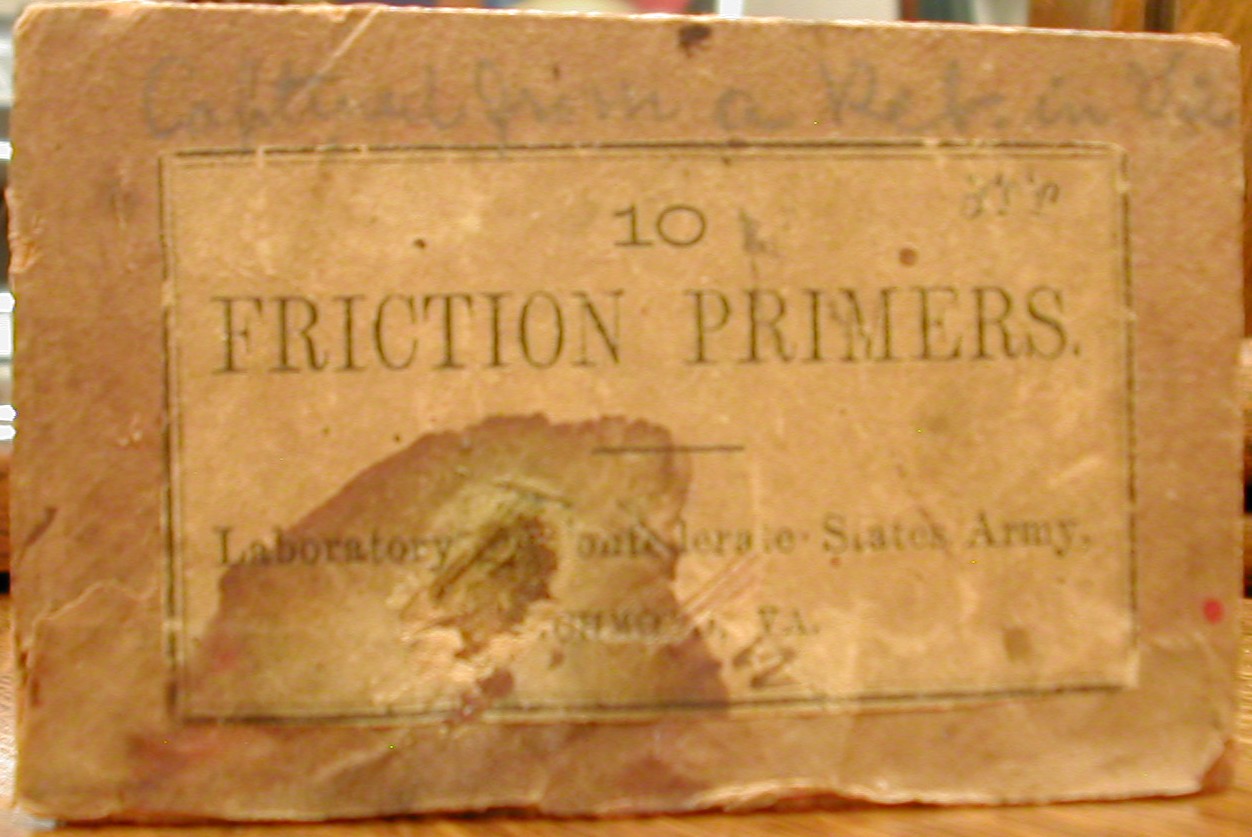

                  The original

                  Click image for larger version

Name:	RichmondArsenalFrictionPrimerBox-1.jpg
Views:	2
Size:	169.2 KB
ID:	223963
                  David H. Thomas
                  Starr's NC Battery
                  Fayetteville, NC

                  Comment


                  • #10
                    Re: Friction Primer Packs???

                    Would anyone have a printable file?
                    I've been looking now for quite a while.

                    Though I seek the friction primer label
                    the printable file appears a fable.

                    The kids should but have a fully stocked limber box
                    but my search is tiresome and now on the rocks.

                    For reproducibles I do lament
                    until my data minutes are nearly spent.

                    So now I appeal to you, my pard
                    to search your flash drive, your discs, your hard (drive).

                    Wouldst thou share the file of which I speak?
                    Or mention another whose interest I'd pique?

                    Everything else is right on track
                    'cept the elusive, friction primer pack.

                    Please generously share if you are able,
                    the US or CS friction primer label.
                    Den Bolda

                    Comment


                    • #11
                      Re: Friction Primer Packs???

                      Federal Friction Primer pack label (1).pdf

                      Courtesy of David Thomas. Thank you, sir.
                      Den Bolda
